JL-200X Photocontrol Receptacle NEMA 3P twist-lock
Product Summary
All the JL-200X photocontrol receptacles were designed for the lanterns intended to accept a twist-lock photocontrol for power management.

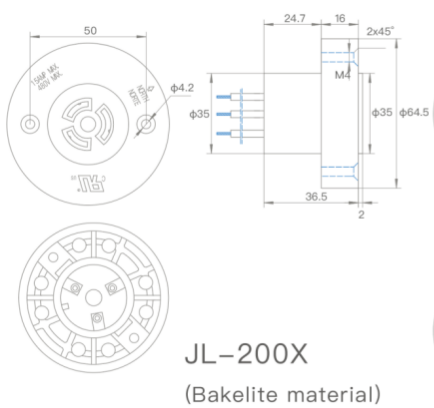

Product size
Product Features
Specifications
|
Model No.
|
JL-200X
|
|
Power Volt Range
|
0~480VAC
|
|
Rated Frequency
|
50/60Hz
|
|
Load Rating
|
15 A
|
|
Ambient Temperature
|
-40°C ~ +70°C
|
|
Related Humidity
|
96%
|
|
Lead Length
|
6" min
|
|
Lead
|
AWG#12/14/16
AWG#18(non-UL)
|
|
Cable Line (IP65)
|
-
|
|
Certifications
|
ANSI C136.10-2010(RS type only)
|
FAQs
Q1: What is the highway & expressway lighting photocontrol receptacle?
A: It is a professional photocontrol receptacle specially designed for highway and expressway lighting systems, providing stable connection for photocontrol devices.
Q2: What interface standard does this receptacle adopt?
A: It uses a standard NEMA 3P interface, which has high universality and good compatibility with mainstream photocontrol controllers.
Q3: What are the advantages of the twist lock structure?
A: The twist lock design ensures firm connection, anti-vibration and anti-loosening, which is very suitable for long-term operation under highway vibration and bad weather.
Q4: Why is this receptacle especially suitable for highways and expressways?
A: It has high stability, strong weather resistance and reliable waterproof performance, meeting the long-term uninterrupted operation requirements of expressway lighting.
Q5: In what lighting systems is this NEMA 3P receptacle mainly applied?
A: It is mainly used in highway lighting, expressway lighting, tunnel lighting and other high-reliability-required road lighting projects.
