Environment IP66 Shorting Cap Short Circuit Cap For Lighting Equipment Of NEMA Sockets

Name: Environment IP66 Shorting Cap Short Circuit Cap For Lighting Equipment Of NEMA Sockets
Brand: LongJoin
Price: 1 USD

Wholesale Environment IP66 Shorting Cap Short Circuit Cap For Lighting Equipment Of NEMA Sockets from china suppliers

Brand Name : LongJoin

Model Number : JL-208-IP66

Place of Origin : China

Price : negotiable

Packaging Details : Different packaging methods are adopted according to different modes of transport.

Payment Terms : Western Union,MoneyGram,T/T

Rated Loading : 7200W Tungsten,7200VA Ballast

Maximum Voltage : 0~480VAC

Shell material : PC

IP level : IP66

Certifications : RoHS,UL,CE,CB,UKCA,ANSI C136.10

Real-world Scenarios : Circuit Troubleshooting

Contact Now

Product Summary

JL-208 (IP66) short-circuit cap is used as a protective cover for lighting equipment of NEMA sockets.
Comply with ANSI136.10 installation standards.
Provide power continuity for NEMA interface sockets that are not currently equipped with light controllers.

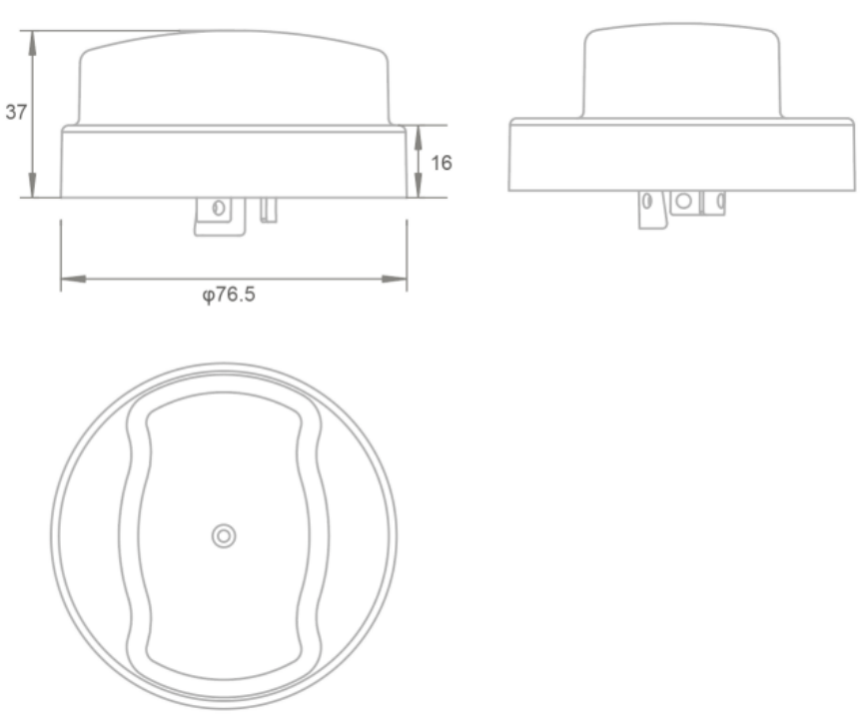

Product size

Product Features

Short a twist-lock photocontrol receptacle while under maintenance
Applicable with both ANSI C136.10
IP66 protection while installed
UV stabilized Polycarbonate enclosure
High impact Polybutylene Terephthalate base
Easy-to-handle Twist-bar Enclosure

Specifications

Model No.	JL-208-IP66
Rated Loading	7200W Tungsten,7200VA Ballast
Maximum Voltage	0~480VAC
Rated Frequency	50/60Hz
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Shell material	PC
IP level	IP66
Certifications	ANSI C136.10

FAQs

Q1: What is an Environment IP66 shorting cap for NEMA sockets?

A:It is a heavy‑duty, weatherproof short‑circuit safety cap designed for NEMA‑standard sockets used in outdoor and industrial lighting systems. Its IP66 rating provides full dust protection and powerful water resistance, making it ideal for harsh environmental use.

Q2:What does an IP66 shorting cap do for lighting equipment?

A:When inserted into an unused NEMA socket, it creates a safe short circuit to discharge residual voltage, prevent electric shock, suppress arcing, and protect circuits from damage. It also seals the socket against dust, water, and corrosion.

Q3:What does IP66 rating mean for this shorting cap?

A:IP66 means:

Totally protected against dust ingress
Protected against powerful water jets from any direction

It is suitable for permanent outdoor use, coastal areas, and harsh industrial environments.

Q4:How is this IP66 shorting cap different from IP54 or IP44 versions?

A:IP66 offers significantly higher environmental protection. It is fully dust‑tight and waterproof against high‑pressure water spray, making it more durable for extreme outdoor conditions compared to IP54 or IP44 caps.
